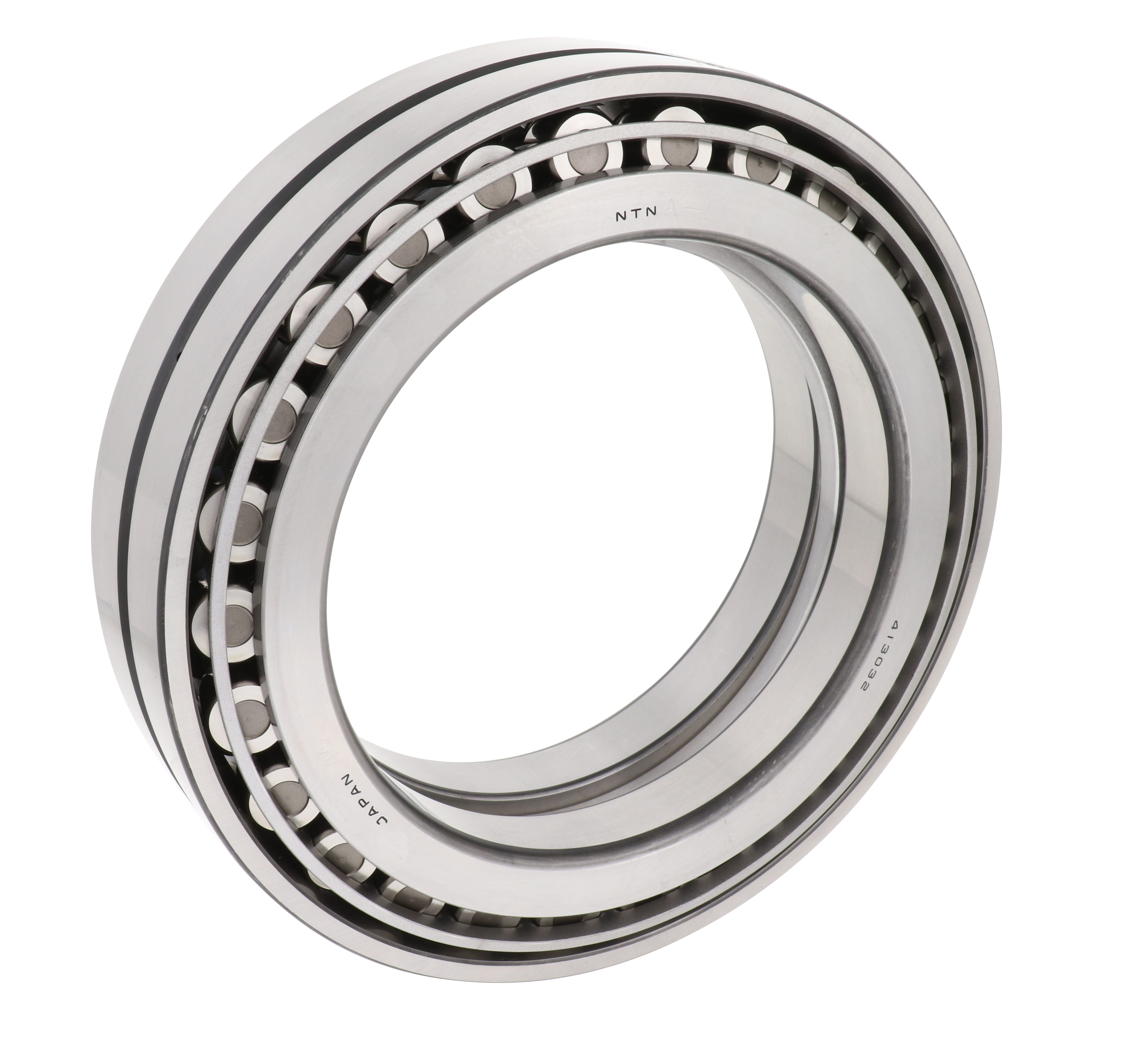

  • Double Row Tapered Roller Bearings - Dimensions
1 - 25 of 225 | Results Per Page | View | Unit of Measure
 1 2 3 4 5 »
Request Information Compare Items Search by Dimensions Add to CAD Cart
Clear Filter

d (in)

At Least : No More Than :
Available Range: 1.5748 to 19.685

d (mm)

At Least : No More Than :
Available Range: 40 to 500

D (in)

At Least : No More Than :
Available Range: 3.1496 to 32.6772

D (mm)

At Least : No More Than :
Available Range: 80 to 830

C (in)

At Least : No More Than :
Available Range: 1.4764 to 10.3937

C (mm)

At Least : No More Than :
Available Range: 37.5 to 264

B1 (in)

At Least : No More Than :
Available Range: 1.7717 to 12.9921

B1 (mm)

At Least : No More Than :
Available Range: 45 to 330

r (in)

At Least : No More Than :
Available Range: 0.0591 to 0.2953

r (mm)

At Least : No More Than :
Available Range: 1.5 to 7.5

Static Load Rating (lbf)

At Least : No More Than :
Available Range: 30000 to 3150000

Static Load Rating (N)

At Least : No More Than :
Available Range: 134000 to 14000000

Static Load Rating (kN)

At Least : No More Than :
Available Range: 134 to 14000

Dynamic Load Rating (lbf)

At Least : No More Than :
Available Range: 23600 to 1440000

Dynamic Load Rating (N)

At Least : No More Than :
Available Range: 105000 to 6400000

Dynamic Load Rating (kN)

At Least : No More Than :
Available Range: 105 to 6400

Item #

d

D

C

B1

r

Static Load Rating

Dynamic Load Rating

N/A 9.4488 in240.000 mm N/A 14.1732 in360.000 mm N/A 3.2283 in82.000 mm N/A 3.6220 in92.000 mm N/A 0.1575 in4.000 mm N/A 261000 lbf1160000 N1160.00 kN N/A 147000 lbf655000 N655.00 kN
N/A 19.6850 in500.000 mm N/A 28.3465 in720.000 mm N/A 5.8661 in149.000 mm N/A 6.5748 in167.000 mm N/A 0.2362 in6.000 mm N/A 1210000 lbf5400000 N5400.00 kN N/A 585000 lbf2610000 N2610.00 kN
N/A 4.7244 in120.000 mm N/A 7.0866 in180.000 mm N/A 1.6142 in41.000 mm N/A 1.8110 in46.000 mm N/A 0.0984 in2.500 mm N/A 67000 lbf298000 N298.00 kN N/A 43500 lbf193000 N193.00 kN
N/A 5.1181 in130.000 mm N/A 7.8740 in200.000 mm N/A 1.8110 in46.000 mm N/A 2.0472 in52.000 mm N/A 0.0984 in2.500 mm N/A 82000 lbf365000 N365.00 kN N/A 50500 lbf224000 N224.00 kN
N/A 5.5118 in140.000 mm N/A 8.2677 in210.000 mm N/A 1.8504 in47.000 mm N/A 2.0866 in53.000 mm N/A 0.0984 in2.500 mm N/A 93500 lbf415000 N415.00 kN N/A 59000 lbf262000 N262.00 kN
N/A 5.9055 in150.000 mm N/A 8.8583 in225.000 mm N/A 1.9685 in50.000 mm N/A 2.2047 in56.000 mm N/A 0.1181 in3.000 mm N/A 96500 lbf430000 N430.00 kN N/A 61500 lbf274000 N274.00 kN
N/A 6.2992 in160.000 mm N/A 9.4488 in240.000 mm N/A 2.0866 in53.000 mm N/A 2.3622 in60.000 mm N/A 0.0984 in2.500 mm N/A 120000 lbf535000 N535.00 kN N/A 74000 lbf330000 N330.00 kN
N/A 6.6929 in170.000 mm N/A 10.2362 in260.000 mm N/A 2.3622 in60.000 mm N/A 2.6378 in67.000 mm N/A 0.1181 in3.000 mm N/A 139000 lbf620000 N620.00 kN N/A 82000 lbf365000 N365.00 kN
N/A 7.0866 in180.000 mm N/A 11.0236 in280.000 mm N/A 2.5984 in66.000 mm N/A 2.9134 in74.000 mm N/A 0.1181 in3.000 mm N/A 165000 lbf735000 N735.00 kN N/A 95500 lbf425000 N425.00 kN
N/A 7.4803 in190.000 mm N/A 11.4173 in290.000 mm N/A 2.6378 in67.000 mm N/A 2.9528 in75.000 mm N/A 0.1181 in3.000 mm N/A 166000 lbf740000 N740.00 kN N/A 96500 lbf430000 N430.00 kN
N/A 7.8740 in200.000 mm N/A 12.2047 in310.000 mm N/A 2.8740 in73.000 mm N/A 3.2283 in82.000 mm N/A 0.1181 in3.000 mm N/A 211000 lbf940000 N940.00 kN N/A 119000 lbf530000 N530.00 kN
N/A 7.8740 in200.000 mm N/A 12.2047 in310.000 mm N/A 2.8740 in73.000 mm N/A 3.2283 in82.000 mm N/A 0.1181 in3.000 mm N/A 211000 lbf940000 N940.00 kN N/A 119000 lbf530000 N530.00 kN
N/A 8.6614 in220.000 mm N/A 13.3858 in340.000 mm N/A 3.1496 in80.000 mm N/A 3.5433 in90.000 mm N/A 0.1575 in4.000 mm N/A 238000 lbf1060000 N1060.00 kN N/A 134000 lbf595000 N595.00 kN
N/A 10.2362 in260.000 mm N/A 15.7480 in400.000 mm N/A 3.6220 in92.000 mm N/A 4.0945 in104.000 mm N/A 0.1969 in5.000 mm N/A 345000 lbf1540000 N1540.00 kN N/A 189000 lbf840000 N840.00 kN
N/A 11.0236 in280.000 mm N/A 16.5354 in420.000 mm N/A 3.7008 in94.000 mm N/A 4.1732 in106.000 mm N/A 0.1969 in5.000 mm N/A 365000 lbf1630000 N1630.00 kN N/A 200000 lbf890000 N890.00 kN
N/A 11.8110 in300.000 mm N/A 18.1102 in460.000 mm N/A 4.1339 in105.000 mm N/A 4.6457 in118.000 mm N/A 0.1969 in5.000 mm N/A 445000 lbf1990000 N1990.00 kN N/A 241000 lbf1070000 N1070.00 kN
N/A 12.5984 in320.000 mm N/A 18.8976 in480.000 mm N/A 4.2520 in108.000 mm N/A 4.7638 in121.000 mm N/A 0.1969 in5.000 mm N/A 505000 lbf2250000 N2250.00 kN N/A 268000 lbf1190000 N1190.00 kN
N/A 13.3858 in340.000 mm N/A 20.4724 in520.000 mm N/A 4.6457 in118.000 mm N/A 5.2362 in133.000 mm N/A 0.2362 in6.000 mm N/A 645000 lbf2870000 N2870.00 kN N/A 335000 lbf1480000 N1480.00 kN
N/A 14.1732 in360.000 mm N/A 21.2598 in540.000 mm N/A 4.7244 in120.000 mm N/A 5.2756 in134.000 mm N/A 0.2362 in6.000 mm N/A 630000 lbf2810000 N2810.00 kN N/A 330000 lbf1470000 N1470.00 kN
N/A 14.1732 in360.000 mm N/A 21.2598 in540.000 mm N/A 4.7244 in120.000 mm N/A 5.2756 in134.000 mm N/A 0.2362 in6.000 mm N/A 630000 lbf2810000 N2810.00 kN N/A 330000 lbf1470000 N1470.00 kN
N/A 14.9606 in380.000 mm N/A 22.0472 in560.000 mm N/A 4.8031 in122.000 mm N/A 5.3150 in135.000 mm N/A 0.2362 in6.000 mm N/A 755000 lbf3350000 N3350.00 kN N/A 380000 lbf1690000 N1690.00 kN
N/A 15.7480 in400.000 mm N/A 23.6220 in600.000 mm N/A 5.1969 in132.000 mm N/A 5.8268 in148.000 mm N/A 0.2362 in6.000 mm N/A 830000 lbf3700000 N3700.00 kN N/A 420000 lbf1860000 N1860.00 kN
N/A 16.5354 in420.000 mm N/A 24.4094 in620.000 mm N/A 5.2756 in134.000 mm N/A 5.9055 in150.000 mm N/A 0.2362 in6.000 mm N/A 955000 lbf4250000 N4250.00 kN N/A 475000 lbf2110000 N2110.00 kN
N/A 17.3228 in440.000 mm N/A 25.5906 in650.000 mm N/A 5.5118 in140.000 mm N/A 6.1811 in157.000 mm N/A 0.2362 in6.000 mm N/A 1160000 lbf5150000 N5150.00 kN N/A 555000 lbf2470000 N2470.00 kN
N/A 18.1102 in460.000 mm N/A 26.7717 in680.000 mm N/A 5.7087 in145.000 mm N/A 6.4173 in163.000 mm N/A 0.2362 in6.000 mm N/A 1200000 lbf5350000 N5350.00 kN N/A 585000 lbf2600000 N2600.00 kN
